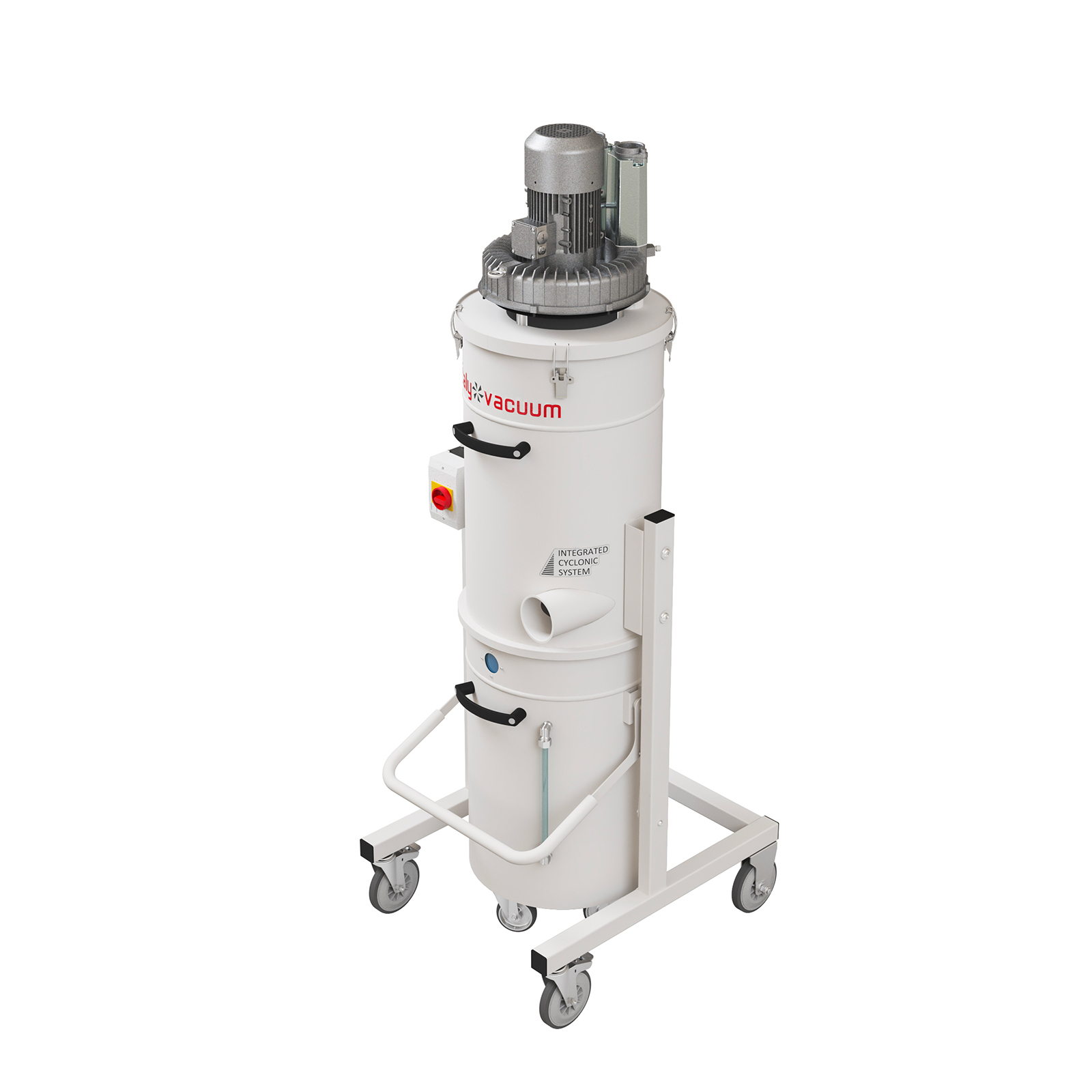

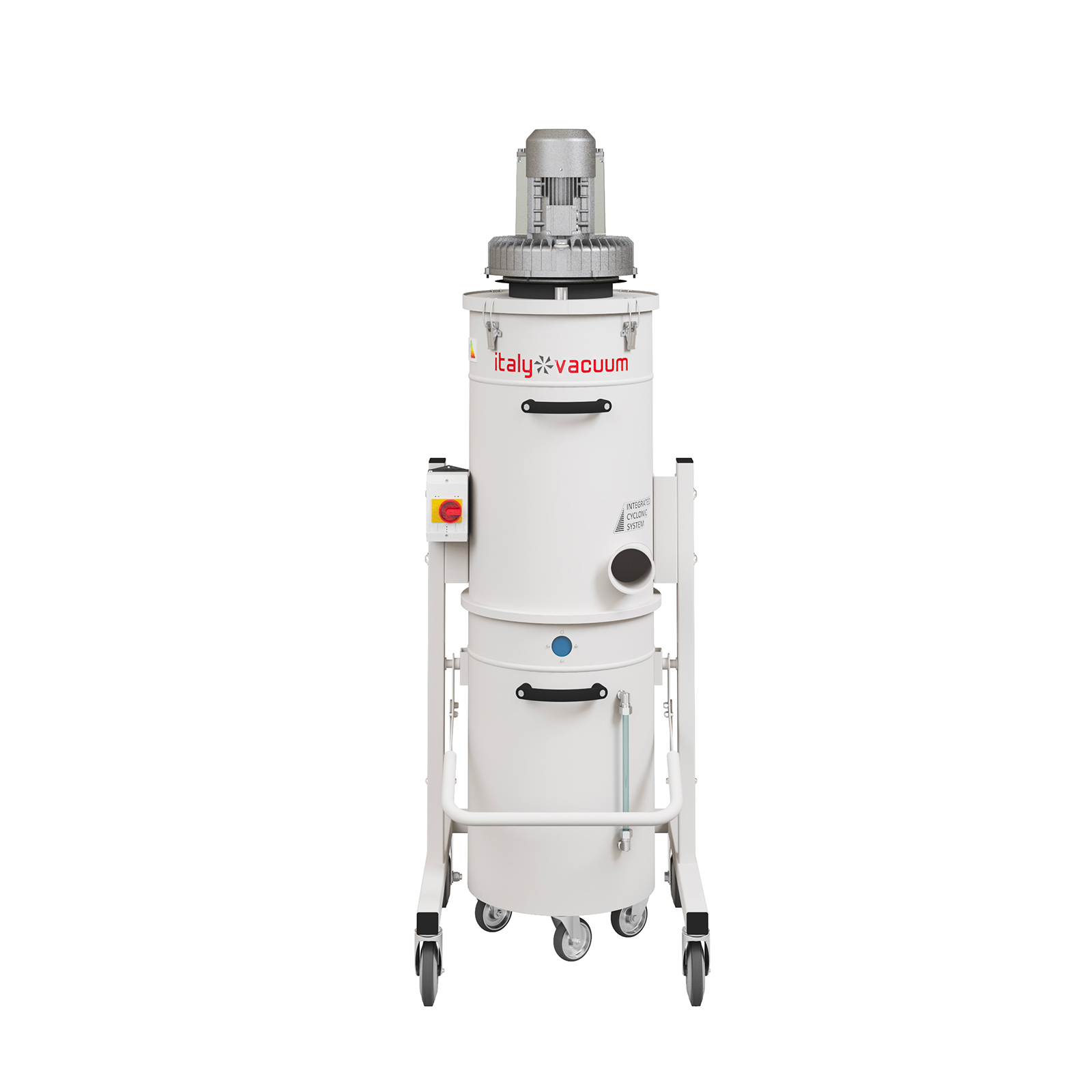

Universal oil - Oil and chips collector
UNIVERSAL OIL is one of the best-selling models in the oil and mist division on the international market, thanks to its high performance in terms of suction capacity compared to its small overall dimensions.
GENERAL INFORMATION ON THE UNIVERSAL OIL VACUUM CLEANER
Motorisation available: from 2.2 kW ( 3 hp ) to 12.5 kW ( 17 hp )
N° inlet [ Ø ]: N° 1 [ 100mm – 4” ]
Container capacity: 110 Lt ( 29 gal )
Available in ATEX version
Certifications available: C.E. / UL-CSA / CURUS
* available in all voltages and frequencies worldwide
- Technological and highly effective integrated cyclonic system as standard on each model to lengthen the life of the filter and eliminate maintenance costs
- Increase of the distance between the suction inlet and the filters owing to its height so that neither the oil nor its mists can, in any way, clog them and create a reduction in the suction force
- Distribution of air flows inside the extractor is calculated and optimized with the aid of a powerful dedicated software
- Very sturdy thick collection containers reinforced by perimeter folds with scratchproof powder coating
- Container locking system obtained directly on the tubulars of the frame by high precision laser cutting for simpler and more intuitive insertion of the container
- Innovative and ergonomic handle for releasing the collection container for convenient extraction at eye level
- Possibility of equipping the vacuum cleaner with a series of accessories designed for the specific application of the user
- Pneumatic and electronic interface with single or multiple machine tools through remote control systems (on/off – gate valves)
- Available in every voltage and frequency worldwide
- 100% steel frame and top closure structure
- Non-marking pivoting wheels with integrated brake
- Large ergonomic handle for trolley handling
- Powerful double side channel turbine in the upper part of the structure equipped with anti-vibration rubber pads
- Class M air filter with special high density anti-grip polyester fabric – IFA certified – antistatic – oil repellent – water repellent
- Large porthole in the upper part for visual control of the filling level of the container

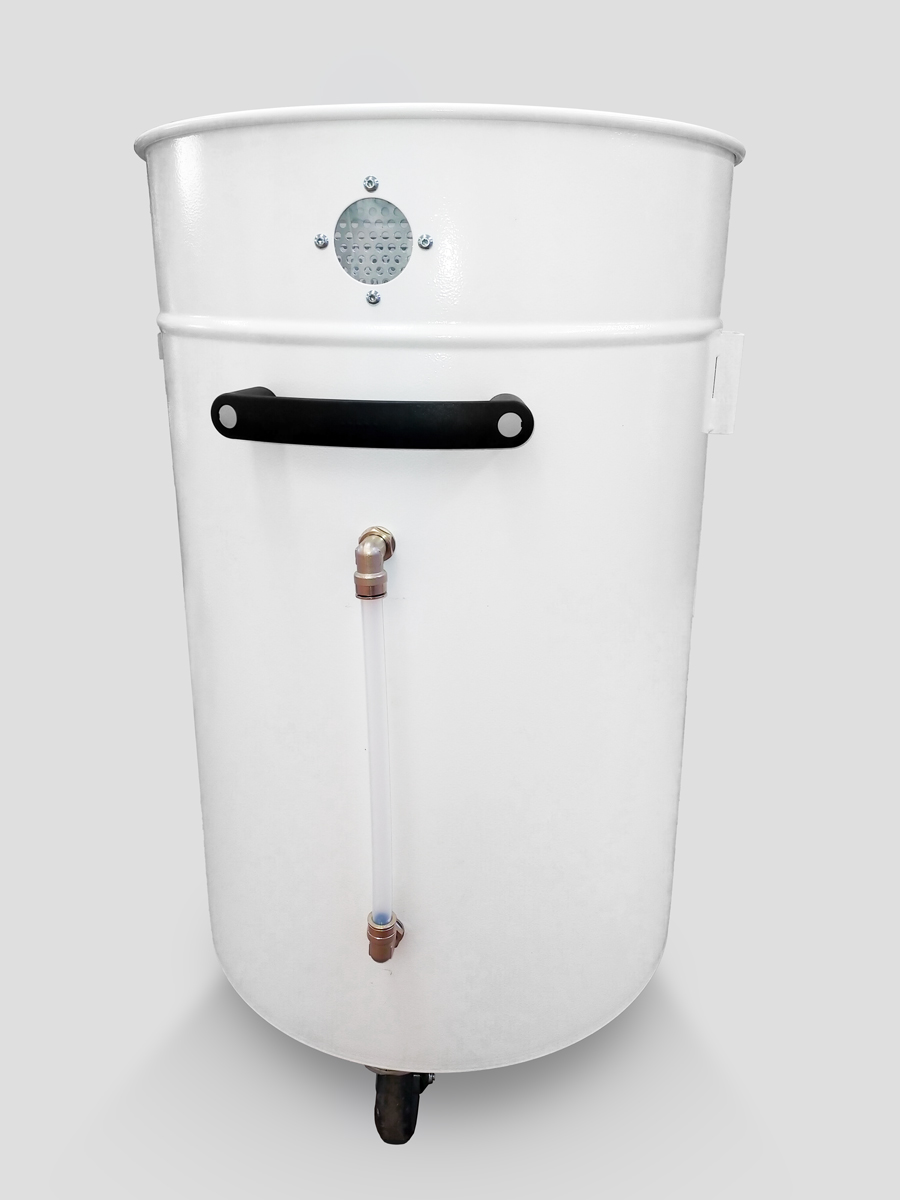

- Second vertical liquid level indicator inside the container with transparent tube
- Robust and well-designed electric rotary switch with clear visibility of its status even in the distance
- 10 meters of electric cable with connection plug
- Contactless antistatic system for grounding residual currents
- Remote start on/off - allows the aspirator and the machinery to be switched on and off simultaneously and automatically
- Easy lift – container hooking system thanks to which it is possible to empty it without any physical effort by the operator, and is in total compliance with the industry regulations

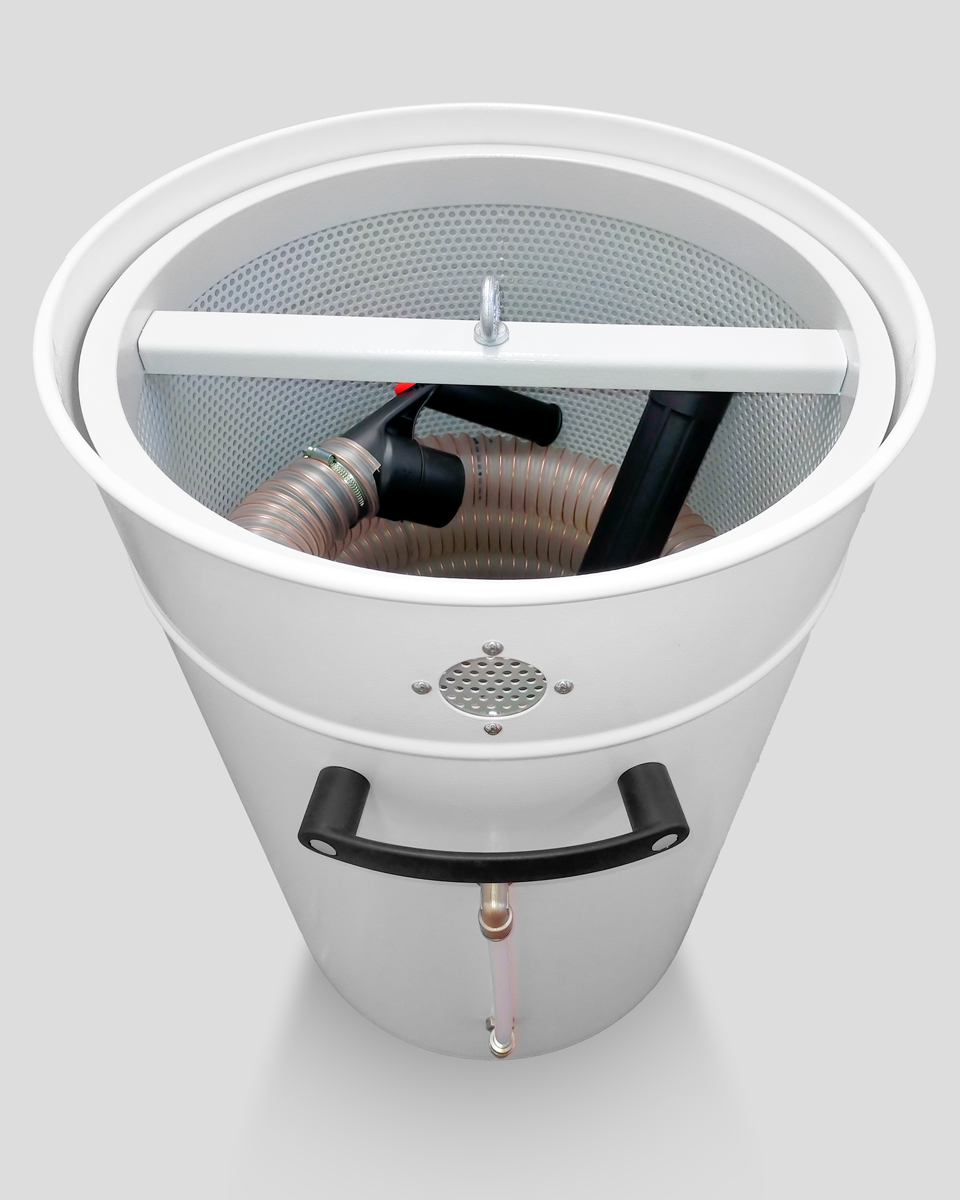

- Liquid and chip separator – a special mesh container allows the separation of the reusable liquid from the collected material
- Manual and automatic gate valves for diverting and distributing the air flows
- Connectors and reducers of different diameters that can be combined with each other without any limits
- Spiral tubes smooth inside for greater flow of the material
- Cleaning accessories - Specially designed and developed for each type and particle size of material to be suctioned, particularly useful at the end of the day to clean the floor or the car
- Oil drain valve - The containers can be equipped with a discharge valve
- Reverse Flow - Primarily aimed at optimizing times and costs due to emptying and filling the tanks full of lubricating oil, it indeed allows both operations to be performed with a single extractor by reversing the flow direction through a specific lever
- Telescopic Support - Specially designed to support extraction pipes for CNC machines, it allows the pipe to descend from the top, avoiding any kind of obstruction for the operator.
Universal oil - Gallery

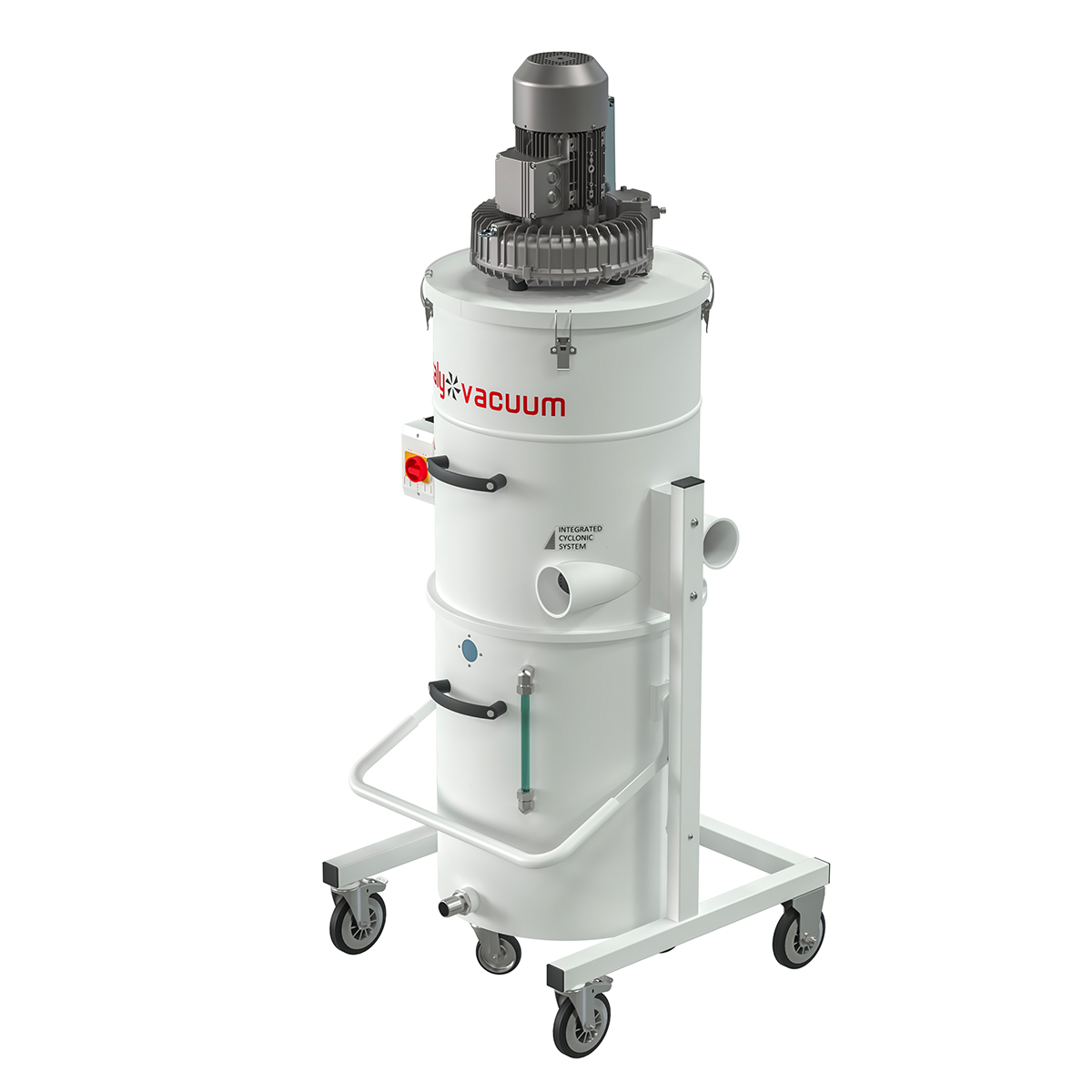

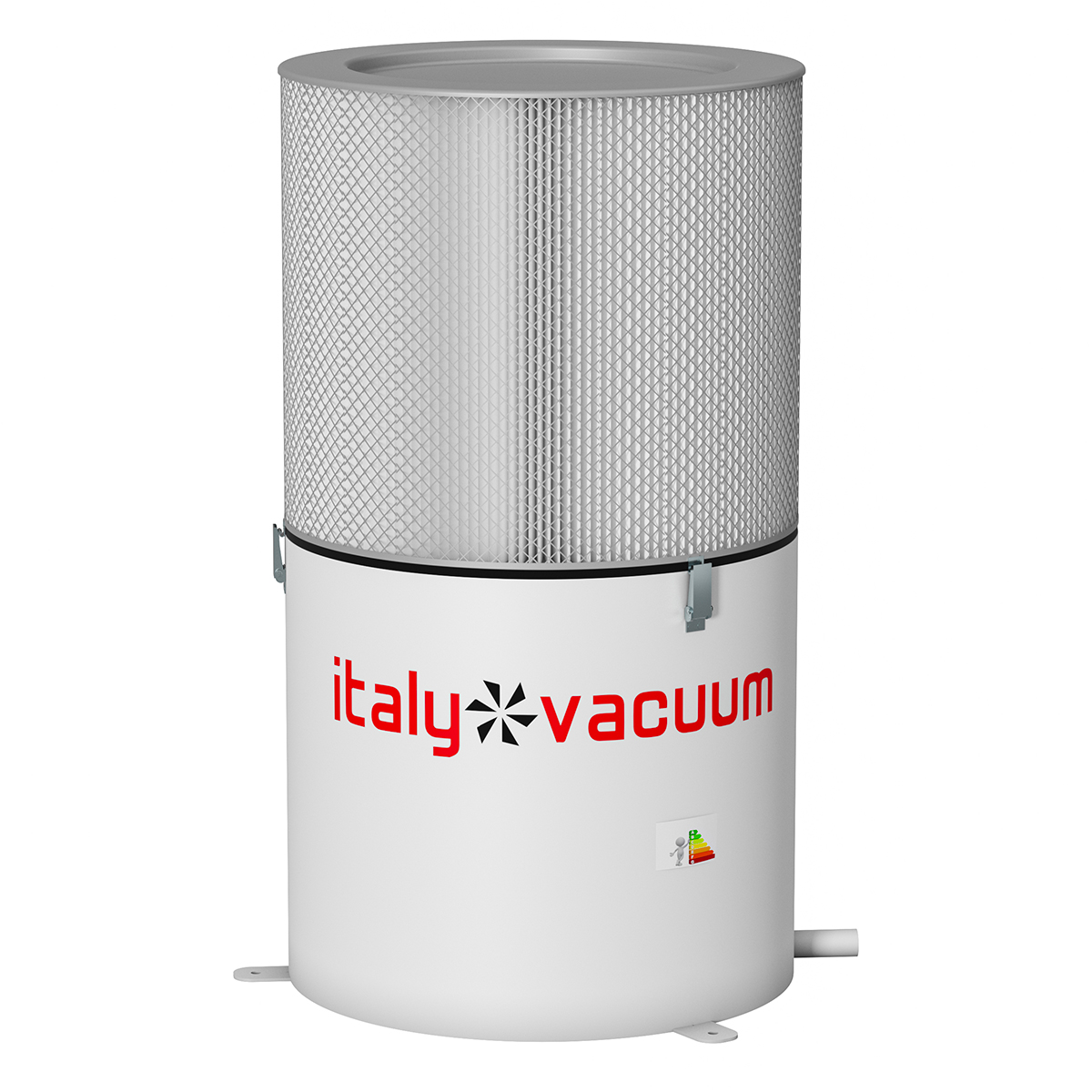

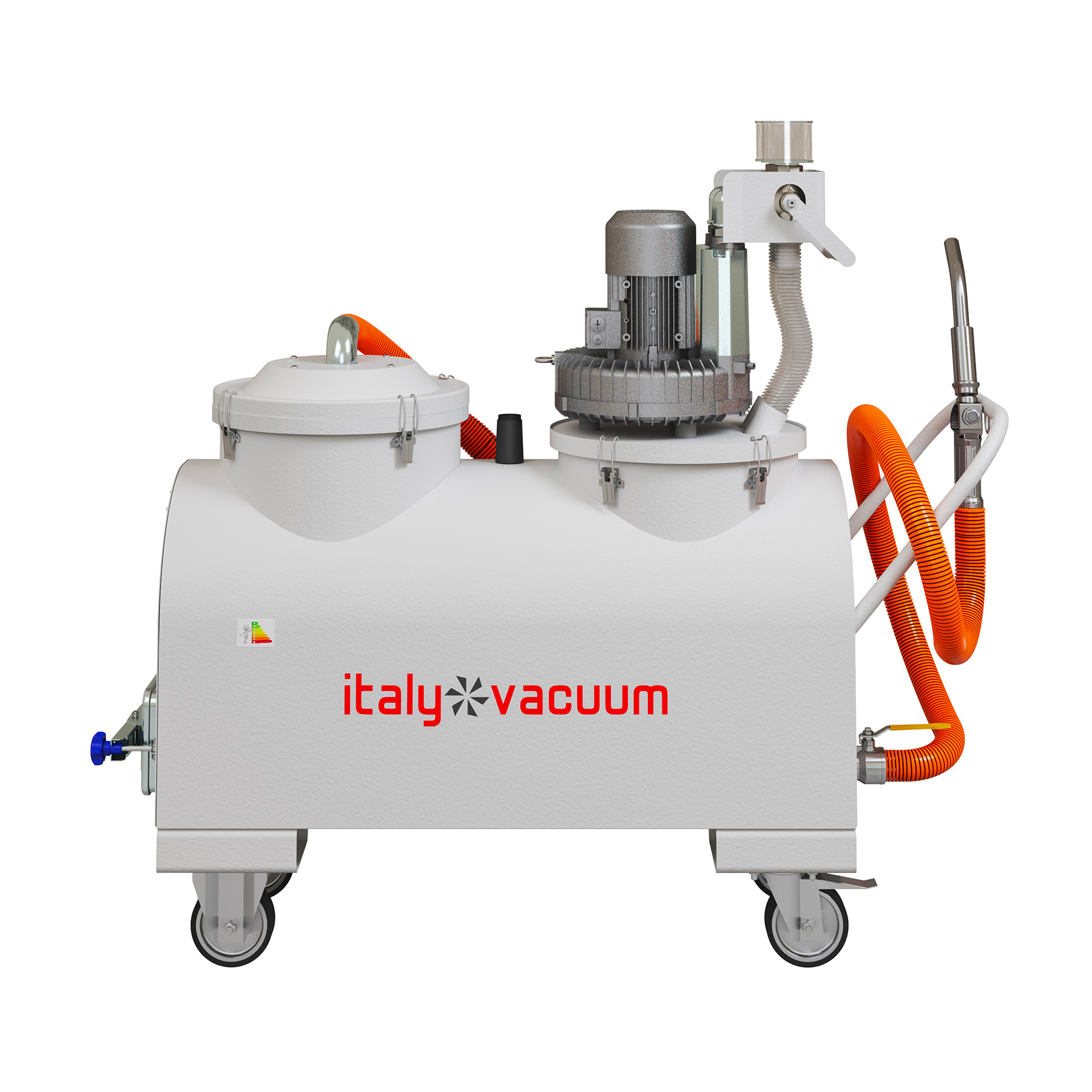

Other products in the category "Oil mist collectors"
-
